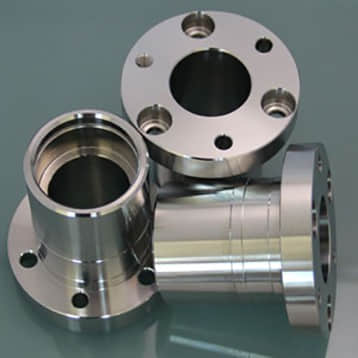

CNC Turning parts

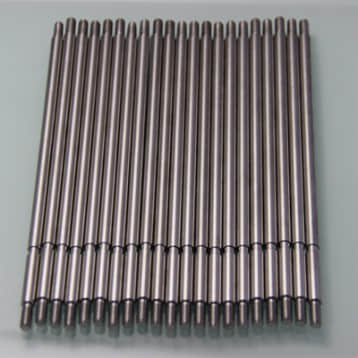

Our CNC turned steel shafts are made through a series of CNC-controlled processes to achieve a smooth surface, the desired straightness of rods, and accurate dimensional tolerances.

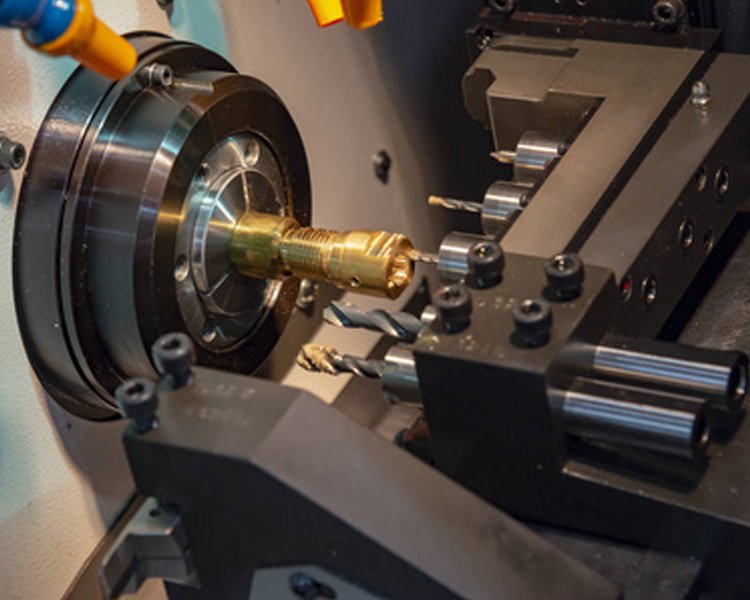

CNC turning is commonly produce cylindrical components with high precision and accuracy.It is a machining process which use the computer numerical control machines.During the CNC turning process, a high-speed rotated chuck hold in the material ,while a cutting tool remove out the material from a rotating work-piece.At the MLS Turning Center, experienced engineers program the turret with tools to move the raw material bar ,at the same time it removes the material to create the programmed shape CNC turned parts according the customer’s drawing.We also called this process “subtraction machining” ,as a result it involves material removal.

Shapes of CNC Turning

CNC turning machining produce round or cylindrical parts , although it work started with round material as usually, however, the material can be both squares or hexagons.It can work in various processes required and quickly adapt to different material . Meanwhile, various types of rotary surfaces can be processed with this turning service in MLS, such as external and internal turning, taper turning,  facing, parting, grooving, drilling, knurling, boring, reaming, threading, etc.

Inner and Outer Diameters Turning

Machining precise cylindrical features round parts,CNC turning center with tooling options, however it can stop the bar rotation and add other features on the work-piece like drilled holes, grooves and milled on the material as well.For the first, there are many different tooling options in the MLS CNC turning center, such us outer diameter limitations, spindle options, power and speed capabilities that affect the processing  types of turned parts economically.

Parting and Grooving

Machining for parting off material from the work-piece, or cutting a “groove” profile in either the internal or external part of the work-piece,CNC turning not only use a single-point cutting tool to create a deep groove in the material, but it also remove its internal components, it results in the production of parts or the cutting off the originals.

Boring and Reaming

In order to process highly accurate diameters, the CNC turning can either enlarge or do the finishing of existing holes as well.

Computer-controlled a turret which tools mounted on, more tools that the turret can hold, the more options are available for machining complexities on the turn parts.

Threading

A thread is a helical groove with a specific length and pitch on a cylindrical part.The tool moves round along the side of the material and cuts the groove onto the external parts at the same time .
